SKU: JG-ELB1-4X1-8

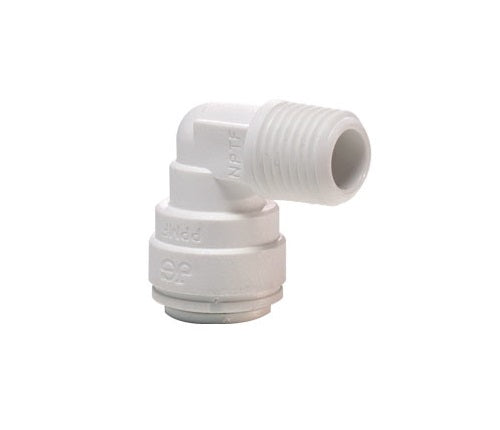

John Guest Fixed Elbow 1/4" Tube OD x 1/8" Thread NPTF Polypropylene White (PP480821W)

Sale price$2.95 USD

    • 1/4" Tube OD x 1/8" Thread NPTF
    • White Polypropylene Constructions with food grade EPDM O-rings
    • FDA approved material with excellent chemical resistance

JOHN GUEST WORLD CONNECTIONS

John Guest has a long established reputation as a world leading manufacturer of push-in fittings, tubings, and other fluid control products. They are well-known in the industry for producing consistently high quality products with an ongoing commitment to value engineering and product development.

John Guest manages both their design and manufacturing processes in-house at their modern, custom-built facilities in the United Kingdom. Their quality line of Push-In Fittings have been designed for use with a wide range of industrial water treatment applications and systems including Water Purification, Reverse Osmosis, Ice Makers, Beverage Dispensing, Vending & OCS, R.V. and Marine, Car Washing Systems and many more.

This John Guest inch polypropylene fitting is constructed of white polypropylene with food grade EPDM O-rings and was designed for compatibility with a wide range of applications. It is simple to use and require no tools for installation, while delivering a 100% leak-free seal every time. All of our Reverse Osmosis Systems use John Guest Quick-Connect Fittings to provide customers with easy system setup and worry-free operation for many years to come.

POLYPROPYLENE FITTINGS (WHITE) - Fixed Elbow

  • White Polypropylene Constructions with food grade EPDM O-rings
  • Tube sizes option from 1/4" O.D. to 3/8" O.D.
  • FDA approved material with excellent chemical resistance
  • Suitable for water and food applications
  • Not suitable for compressed air applications

WORKING PRESSURES AND TEMPERATURES

Max.

150 psi at 70 DegreeF (Max. 10 Bar at 20 DegreeC)

Max.

60 psi at 140 DegreeF (Max. 4 Bar at 60 DegreeC)

Min.

33 DegreeF / 1 DegreeC

QUICK-CONNECTION - How To

To Connect
Push the tube into the fitting and up to the tube stop.
Pull on the tube to check that it is secure.
To Disconnect
Push the collet square against the fitting. With the collet held in this position the tube can be removed.
